SEPOSE: SEPose: A Synthetic Event-based Human Pose Estimation Dataset for Pedestrian Monitoring

Summary of the maps within CARLA used to generate SEPose data

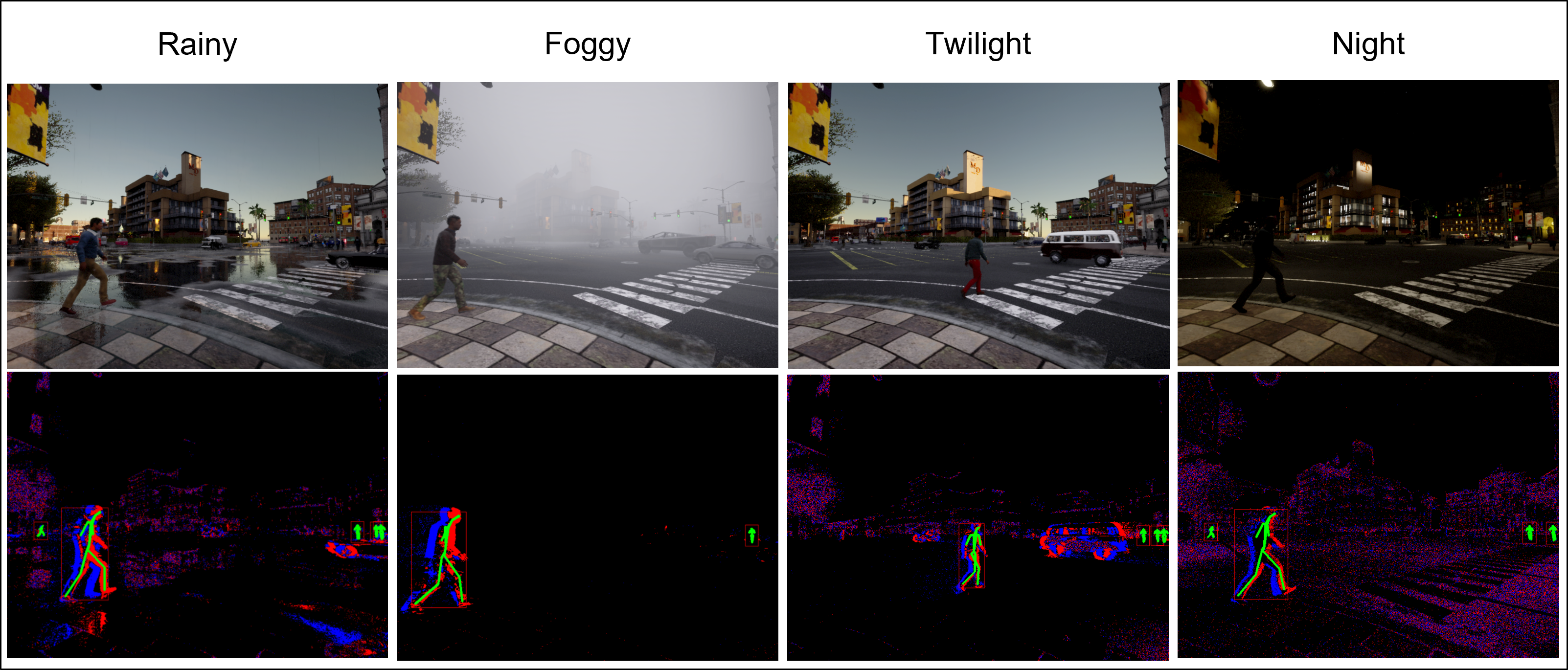

A synthetic data generation pipeline for multi-human pose estimation using CARLA simulator from the POV of fixed traffic cameras spanning busy and light crowds and traffic caross diverse traffic and weather conditions in urban, suburban, and rural settings.

Supports both RGB and Dynamic Vision Sensor (DVS) event camera modalities.

Overview

This repository provides tools to:

Keypoint Definition (16 joints)

Index Keypoint Index Keypoint
0 Head 8 Left Forearm
1 Right Eye 9 Hip Center
2 Left Eye 10 Right Thigh
3 Right Shoulder 11 Left Thigh
4 Left Shoulder 12 Right Shin
5 Right Upper Arm 13 Left Shin
6 Left Upper Arm 14 Right Foot
7 Right Forearm 15 Left Foot

Installation

Prerequisites

Setup

# Clone repository
git clone https://github.com/Kaustav97/SEPose.git
cd eventpose

# Install dependencies
pip install -r requirements.txt

Install the CARLA Simulator from https://carla.org/ to setup the CARLA server from precompiled binaries or the docker image.

Data Generation

1. Start CARLA Server

# In a separate terminal
cd /path/to/carla
./CarlaUE4.sh -quality-level=Epic -RenderOffScreen

2. Run Data Collection

# Basic usage (uses configs/default.yaml)
python GenerateData.py --out-dir ./DATA

# Custom configuration
python GenerateData.py --config configs/my_experiment.yaml --out-dir ./DATA

# Override specific parameters via CLI
python GenerateData.py --out-dir ./DATA -n 50 -w 30  # 50 vehicles, 30 pedestrians

Output Structure

DATA/Town10HD/
├── events/     # DVS event frames (PNG)
├── RGB/        # RGB camera frames (PNG)
├── GT/         # Visualization with skeleton overlay
└── Annot/      # YOLO-pose annotations (TXT)

Configuration

All simulation parameters are controlled via YAML configuration files in configs/.

Key Configuration Sections

# configs/default.yaml

simulation:
  num_frames: 15000             # Total frames to capture
  weather_reset_interval: 300   # Seconds between scene resets
  data_collection_cooldown: 5.0 # Skip frames after reset to avoid artifacts

actors:
  vehicles:
    count: 30
    filter: "vehicle.*"
  walkers:
    count: 10
    percentage_running: 0.0
    percentage_crossing: 0.0

camera:
  dvs:
    positive_threshold: "0.7"
    negative_threshold: "0.7"
    sigma_positive_threshold: "0.7"
    sigma_negative_threshold: "0.7"
    refractory_period_ns: "330000"

weather_presets:
  sunny: { cloudiness: 10.0, precipitation: 0.0, ... }
  rainy: { cloudiness: 90.0, precipitation: 70.0, ... }
  # ... other weather presets

CLI Arguments

Argument Description
--config Path to YAML config (default: configs/default.yaml)
--out-dir Output directory for generated data
-n, --number-of-vehicles Number of vehicles to spawn
-w, --number-of-walkers Number of pedestrians to spawn
--host CARLA server hostname
-p, --port CARLA server port

CLI arguments override config file values.

Dataset Preparation

Convert raw data to YOLO training format (uses symlinks by default to save space):

# For event camera data
python prepare_yolo_dataset.py \
    --data-dir DATA/Town10HD \
    --output-dir datasets/eventpose_events \
    --modality events

# For RGB data
python prepare_yolo_dataset.py \
    --data-dir DATA/Town10HD \
    --output-dir datasets/eventpose_rgb \
    --modality rgb

Options

Argument Default Description
--modality required rgb or events
--train-ratio 0.8 Train/val split ratio
--seed 42 Random seed for reproducibility
--copy false Copy files instead of symlinks

Output Structure

datasets/eventpose_events/
├── data.yaml           # YOLO configuration
├── images/
│   ├── train/          # Training images (symlinks)
│   └── val/            # Validation images
└── labels/
    ├── train/          # Training annotations
    └── val/            # Validation annotations

Training

YOLOv8-Pose

# Install ultralytics
pip install ultralytics

# Train on event data
yolo pose train \
    data=datasets/eventpose_events/data.yaml \
    model=yolov8n-pose.pt \
    epochs=100 \
    imgsz=640 \
    batch=16

# Train on RGB data
yolo pose train \
    data=datasets/eventpose_rgb/data.yaml \
    model=yolov8n-pose.pt \
    epochs=100

YOLOv11-Pose

# Train with YOLOv11
yolo pose train \
    data=datasets/eventpose_events/data.yaml \
    model=yolo11n-pose.pt \
    epochs=100 \
    imgsz=640

Evaluation

# Validate model
yolo pose val \
    data=datasets/eventpose_events/data.yaml \
    model=runs/pose/train/weights/best.pt

# Inference on images
yolo pose predict \
    model=runs/pose/train/weights/best.pt \
    source=path/to/images

Annotation Format

Annotations follow YOLO-pose format:

<class> <x_c> <y_c> <w> <h> <kp1_x> <kp1_y> <kp1_v> ... <kp16_x> <kp16_y> <kp16_v>

Project Structure

eventpose/
├── GenerateData.py          # Main data generation script
├── config.py                # Configuration loader
├── prepare_yolo_dataset.py  # Dataset preparation for YOLO
├── draw_skeleton.py         # Skeleton visualization utilities
├── validate_yolo_pose.py    # Annotation validation
├── configs/
│   └── default.yaml         # Default simulation config
├── DATA/                    # Generated data (gitignored)
└── datasets/                # Prepared YOLO datasets

Citation

@article{chanda2025seposesyntheticeventbasedhuman,
      title={SEPose: A Synthetic Event-based Human Pose Estimation Dataset for Pedestrian Monitoring},
      author={Kaustav Chanda and Aayush Atul Verma and Arpitsinh Vaghela and Yezhou Yang and Bharatesh Chakravarthi},
      year={2025},
      eprint={2507.11910},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2507.11910},
}
